Factory Direct Drill Bars for Mining and Construction Projects
Drill Bars are precision-engineered components used in rock drilling, mining, tunneling, and construction applications. They transmit impact energy and rotation from the drill rig to the drill bit, making them one of the most critical elements in any drilling operation. Whether you are working in underground mining, surface quarrying, or foundation drilling, selecting the right drill bar directly affects penetration rate, hole quality, and overall equipment life. RONGKE manufactures a full range of drill bars designed to withstand extreme working conditions while delivering consistent performance across multiple drilling cycles.
What Are Drill Bars?
A drill bar is a cylindrical or hexagonal steel rod that connects the rock drill to the drill bit. It serves as both a torque transmitter and an impact energy carrier. During drilling, the drill bar rotates and reciprocates rapidly, transferring percussive force from the rock drill piston to the bit at the bottom of the hole. The quality of the drill bar determines how efficiently this energy is transferred and how long the drilling system can operate before replacing worn components.
RONGKE drill bars are produced using high-grade alloy steels and advanced heat treatment processes. Each bar undergoes strict quality control checks to ensure dimensional accuracy, surface hardness, and straightness. The result is a product that reduces downtime, improves hole straightness, and lowers the cost per drilled meter.
Advantages
- High fatigue resistance: Advanced alloy materials and shot peening extend the service life under percussive loads.
- Precision threads: CNC-machined threads ensure a tight fit with drill bits and coupling sleeves, minimizing energy loss.
- Straightness control: Strict straightness tolerances reduce hole deviation and improve drilling accuracy.
- Custom lengths and diameters: Production flexibility allows matching the drill bar exactly to the rig and application.
- Corrosion protection: Phosphating and anti-corrosion coatings protect bars during storage and in wet drilling environments.
- Consistent hardness profile: Uniform heat treatment prevents soft spots that can cause thread stripping or body breakage.
- Cost-effective performance: Lower failure rates and longer intervals between replacements reduce the total cost per drilled meter.
How to Select the Right Drill Bar
Selecting the appropriate drill bar requires careful evaluation of several factors. A mismatch can lead to premature wear, hole deviation, or damage to the drill rig. RONGKE recommends following these steps:
- Determine the rock hardness and abrasiveness: Harder formations require drill bars made from higher alloy grades and may benefit from larger diameters.
- Check the drill rig specifications: Verify the shank size, thread type, and maximum bar length the rig can handle.
- Choose the thread type based on bit and coupling compatibility: Ensure the thread matches the entire drill string.
- Select the appropriate diameter: Larger diameters provide more stiffness for deep holes, while smaller diameters reduce weight and energy consumption.
- Consider the flushing requirement: Drilling method and hole depth determine whether a standard or high-flow flushing channel is needed.
- Evaluate the working environment: Wet, corrosive, or high-temperature conditions may require special surface treatment.
For technical support, RONGKE provides a free selection service based on your drilling parameters.
Frequently Asked Questions
Q: What is the difference between a drill bar and a drill rod?
A: The terms are often used interchangeably in the drilling industry, but there is a subtle distinction. A drill bar is generally considered a shorter, heavier component used in bench drilling and tunneling with a single pass or limited extension. A drill rod is typically longer and designed for extension drilling where multiple rods are coupled together to reach greater depths. Both transmit rotation and impact energy from the drill rig to the bit. At RONGKE, the product line includes both styles, and the choice depends on hole depth, rig type, and drilling method.
Q: How do I know which thread type is compatible with my drill bar?
A: The thread type must match the threads on the drill bit and coupling sleeve. Common thread standards include R-series rope threads and T-series trapezoidal threads. R-series threads are used for smaller diameters and lighter applications, while T-series threads offer higher torque capacity and are preferred for deeper holes and larger rigs. You should check the shank adapter on your drill rig and select a drill bar with the same thread designation. RONGKE can provide a thread compatibility chart and precision gauges to verify your existing components.
Q: What is the typical lead time for standard RONGKE bars?
A: Standard drill bars in common diameters and thread types are often kept in stock and can ship within 5 to 10 working days. For larger quantities or non-stock sizes, production lead time is usually 15 to 30 days. RONGKE maintains a flexible production schedule to accommodate urgent orders for mining and construction projects. Express shipping options are available for customers with critical downtime. The sales team can confirm current stock levels and exact delivery dates at the time of inquiry.
Q: How often should bars be inspected during operation?
A: It should be visually inspected at every rod change or at least once per shift. Look for thread wear, surface cracks, bending, and corrosion pitting. Pay special attention to the first 100 mm behind the thread, as this is the most common failure zone. If any crack is visible, remove the bar from service immediately. Regular inspection prevents catastrophic failures that could damage the drill rig or injure personnel. RONGKE also recommends periodic dimensional checks on threads using calibrated gauges to ensure they remain within tolerance.
Ordering and Technical Support
RONGKE provides comprehensive technical support before and after purchase. The company assists with product selection, thread matching, and troubleshooting field performance issues. Detailed product drawings, material certificates, and heat treatment reports are available upon request. For larger projects, RONGKE can conduct on-site training for drilling crews on proper handling, assembly, and maintenance techniques.
The product range includes standard stock items as well as fully customized drill bars for specialized applications. All products are manufactured under ISO 9001 quality management standards, and each batch is traceable to raw material and production records.
- View as

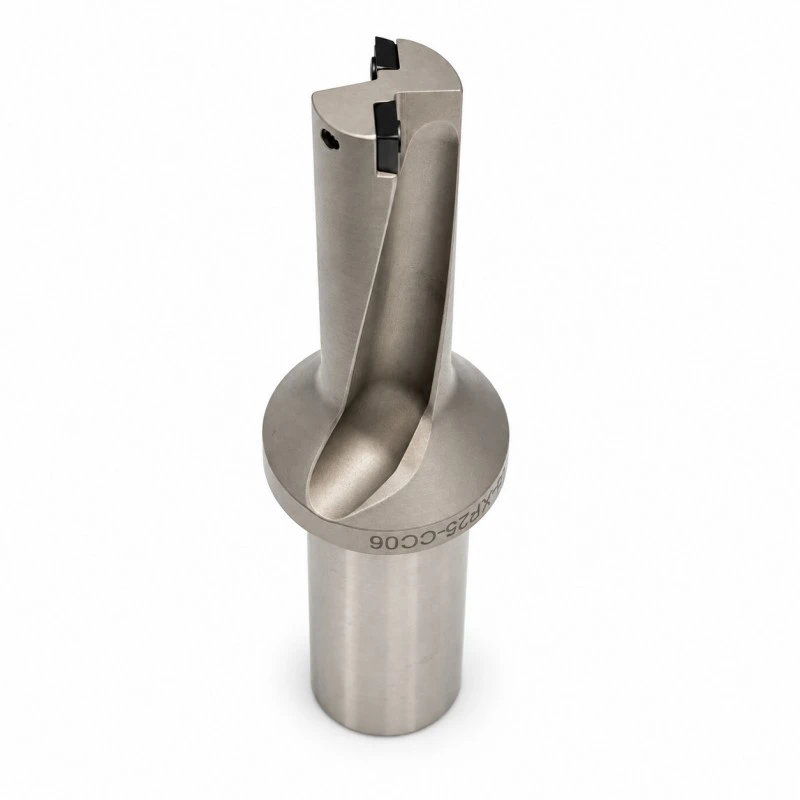

Long Reach Multi-Function Indexable Boring Bar
When choosing the longer standard TCAP option, RONGKE Long Reach Multi-Function Indexable Boring Bar supports selection around the documented 3.25D working length and required projection. Contact us for spare-tip quotations. The cited Ø20 mm model has 65 mm working length and uses XCMT10T304. Request the required projection and review the complete tool envelope for the operation sequence.

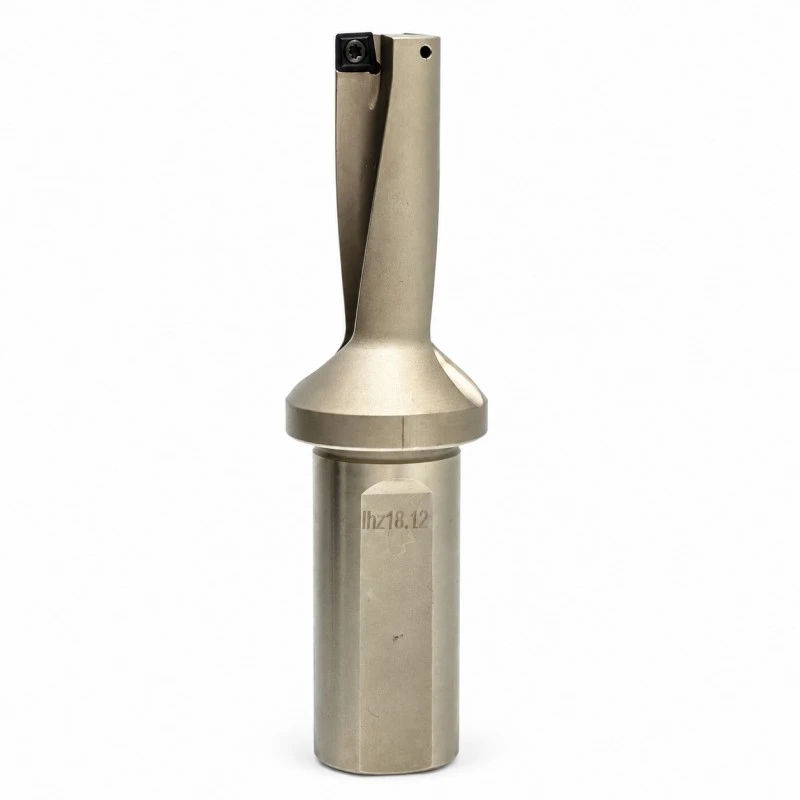

Internal Coolant Multi-Function Indexable Boring Bar
For multifunction operations requiring through-body coolant, RONGKE Internal Coolant Multi-Function Indexable Boring Bar supports selection around the diameter-specific G1/16 or G1/8 coolant connection. Contact us for replacement-part orders. Choose 2.25D or 3.25D reach separately from the coolant connection. Specify body size, XCMT insert and R/L orientation for the planned multifunction operations.

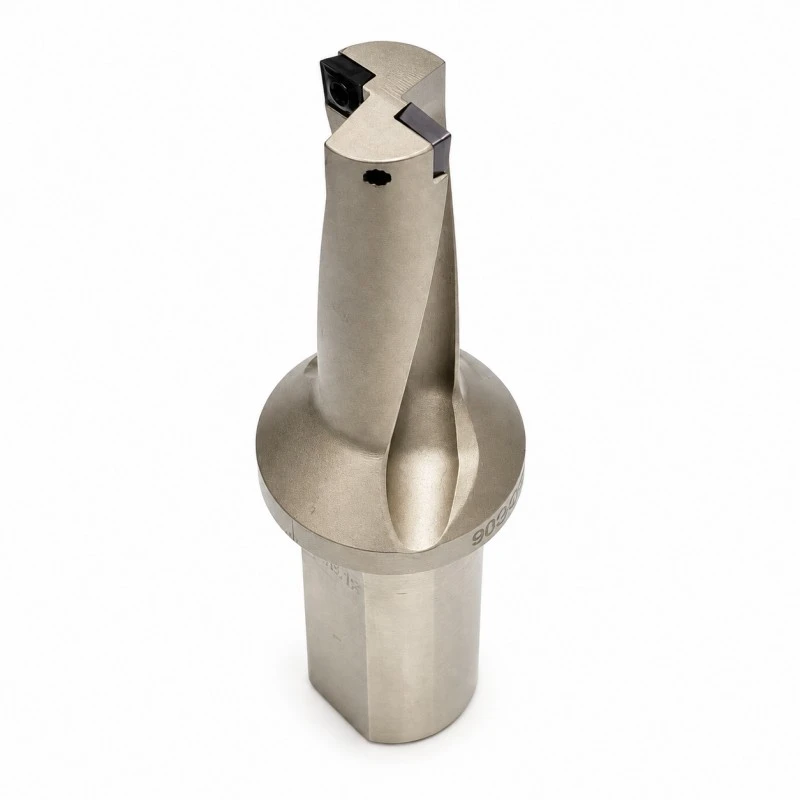

3.25D Multi-Function Indexable Boring Bar
Where 2.25D working reach is insufficient, RONGKE 3.25D Multi-Function Indexable Boring Bar supports selection around the additional 3.25D reach and clearance for each operation. Contact us for purchase planning. At Ø16 mm, L1 increases from 36 to 52 mm. Request the required reach and hand of tool, with clearance checked for each drilling and turning movement.
2.25D Multi-Function Indexable Boring Bar
For compact multifunction setups, RONGKE 2.25D Multi-Function Indexable Boring Bar supports selection around the sequence of drilling, boring and turning movements. Contact us for bulk orders. Each diameter uses a specified XCMT insert and coolant thread. Choose the R/L body and operation sequence when ordering this multifunction configuration.

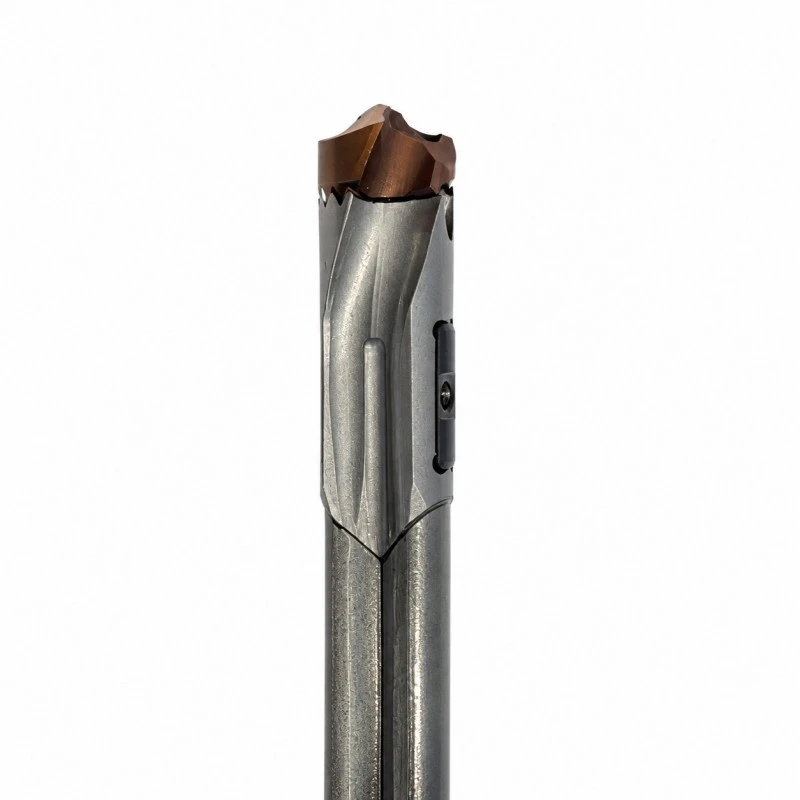

Long Overhang Anti-Vibration Saber Tooth Boring Bar
Where a recessed feature requires an extended support, RONGKE Long Overhang Anti-Vibration Saber Tooth Boring Bar supports selection around the shortest KZ support that clears the fixture. Contact us for factory pricing. M10 supports have Ø20 mm bodies; M12 supports use Ø25 mm. Request the shortest matched assembly that reaches the feature, with cutting-end alignment and fixture clearance reviewed.

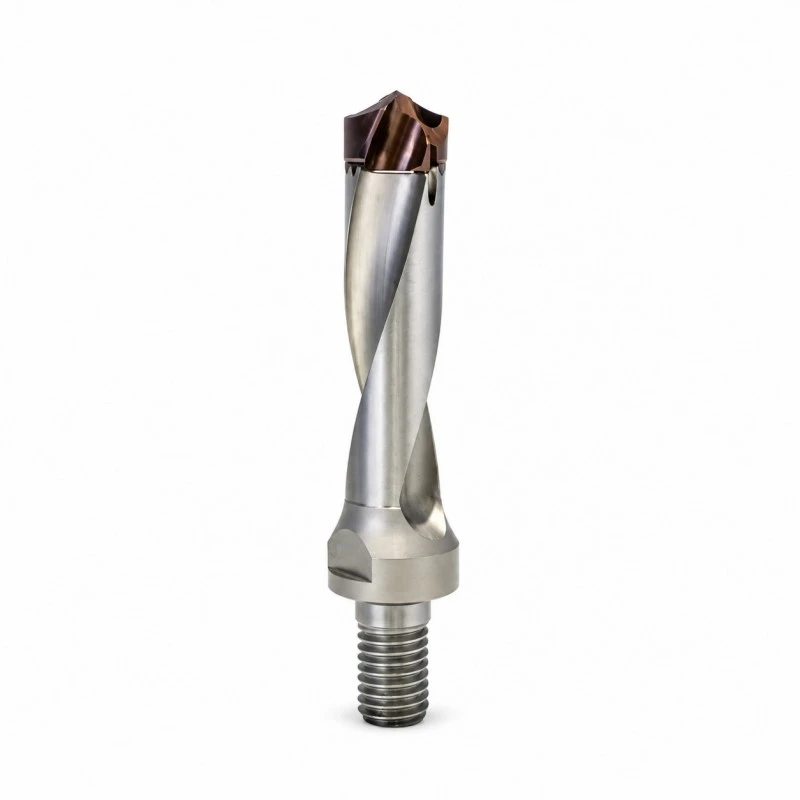

Internal Coolant Anti-Vibration Saber Tooth Boring Bar
For assemblies requiring coolant across the TF/KZ joint, RONGKE Internal Coolant Anti-Vibration Saber Tooth Boring Bar supports selection around the TF/KZ joint and its continuous coolant route. Contact us for wholesale enquiries. Select the TF cutting-diameter group and M10 or M12 support separately. Include the assembled connection details with your inquiry.
RONGKE supplies Drill Bars directly from our factory. Get in touch today for pricing and orders!
