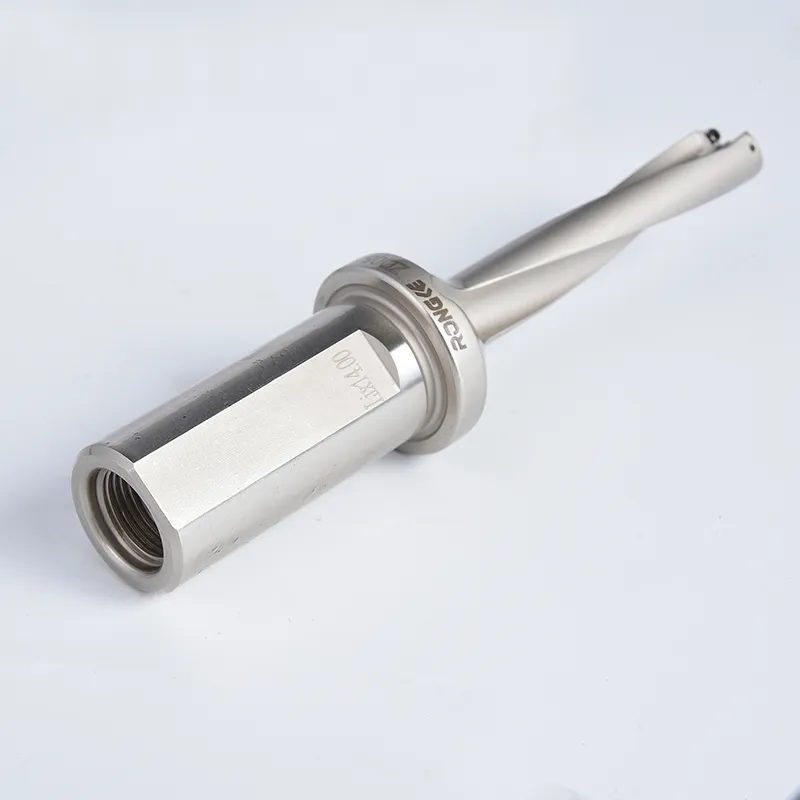

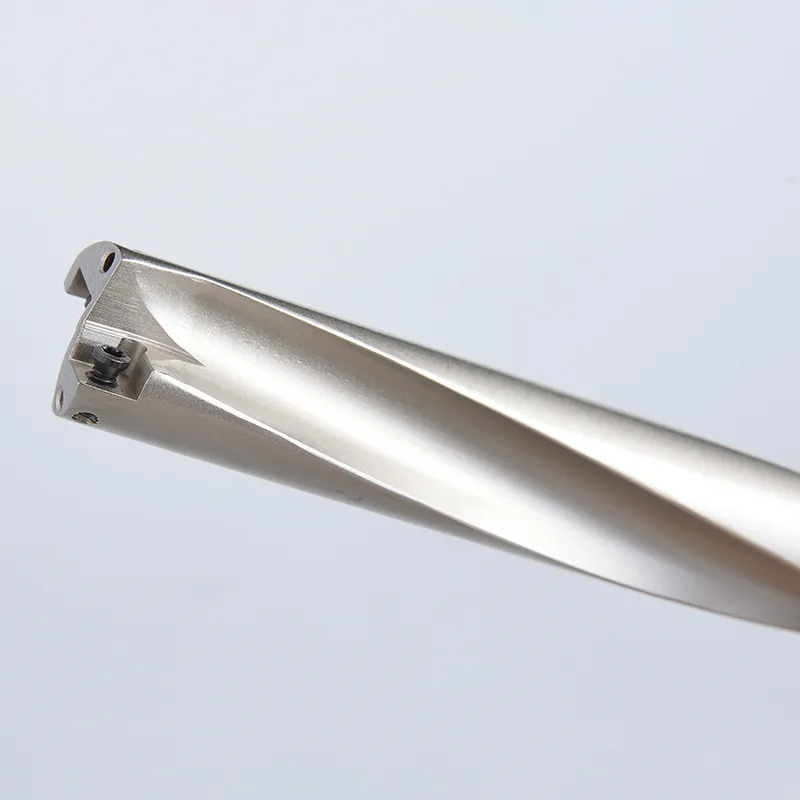

Indexable SP Insert U Drill for Shallow Hole

Source the Indexable SP Insert U Drill For Shallow Hole from RONGKE, a manufacturer in China, with order details focused on SPMG pocket selection and size-specific fastening. The SP-series U drill is a shallow-hole tool with SP insert pockets. For blind holes, the catalog's bottom-profile allowance deserves attention: the remaining bottom feature varies with insert size and must be considered before a finishing operation.

Key Facts at a Glance

Component Roles

An SP body holds the SPMG insert sizes assigned to its model. The pocket and screw combination must be checked together; the SP bottom-profile table is relevant where a blind hole will later be finished.

Where This Configuration Fits

Choose the Indexable SP Insert U Drill For Shallow Hole when the job calls for SPMG pocket selection and size-specific fastening. Use the SP configuration for shallow-hole work organized around SPMG inserts. Blind-hole planning should include the selected SP bottom-wave dimension, especially when the part needs a subsequent bottom-finishing operation.

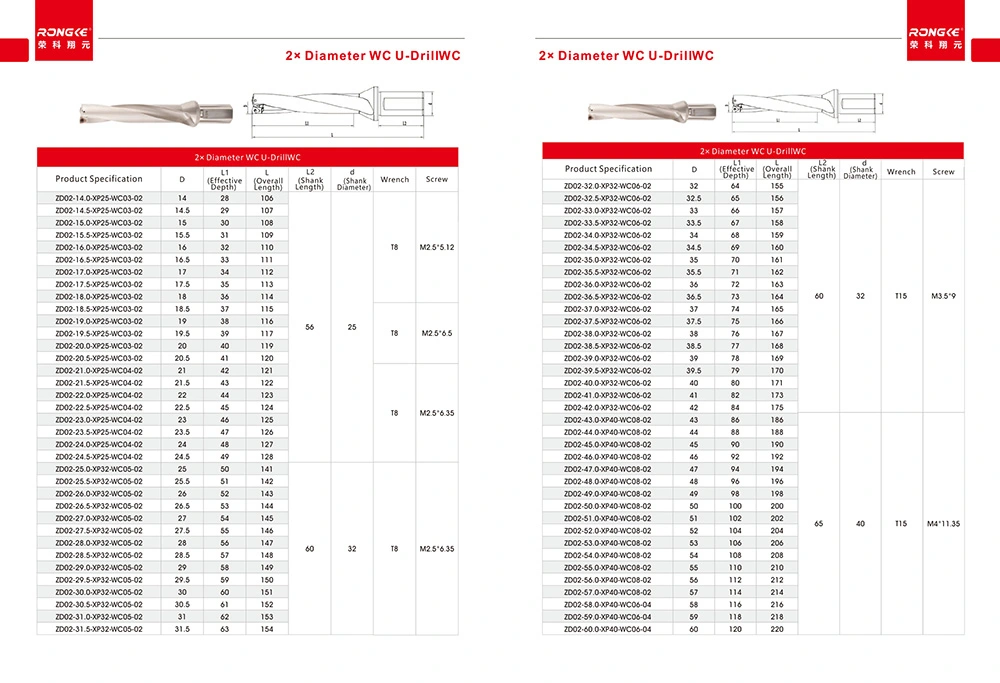

Selection guide — SP vs WC: SP is the SPMG system, with Ø13–60 mm in its 2D table; WC uses WCMT, with Ø14–60 mm in its 2D table. These selected-table ranges do not establish insert interchangeability.

Four Configuration Decisions

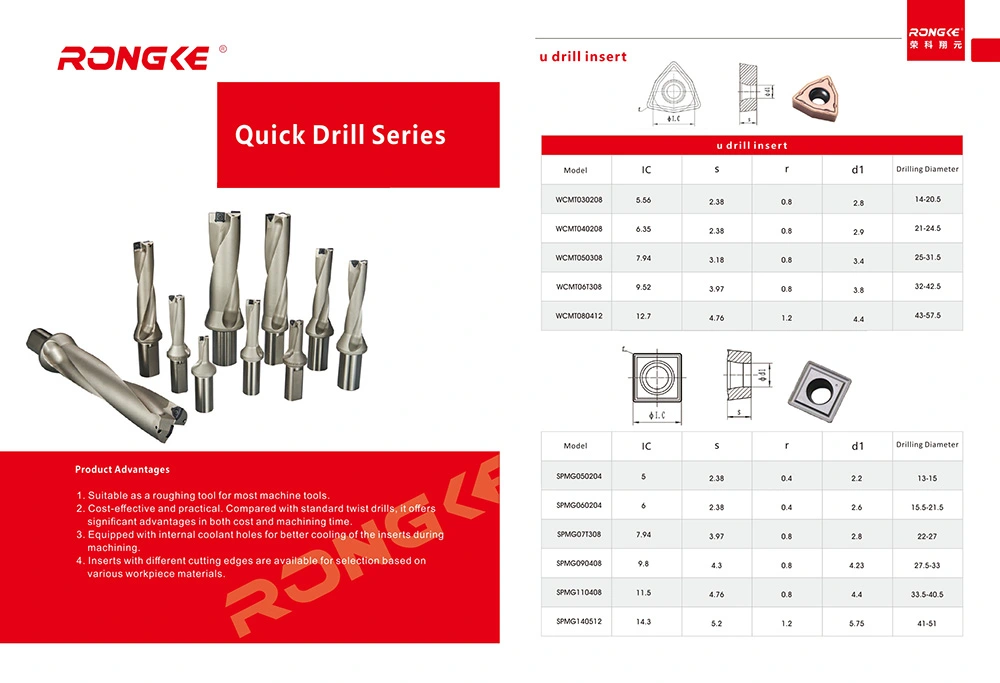

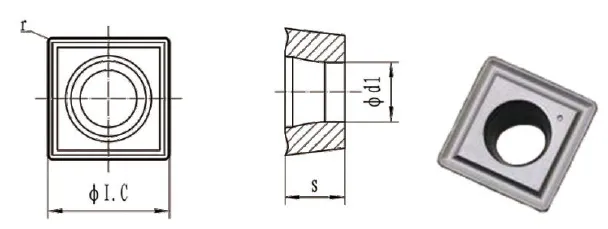

1. Match the SP seat to its SPMG insert

Select SPMG05, 06, 07, 09, 11 or 14 from the SP body reference. Keep the specified pocket size when ordering replacement inserts.

2. Check the SP bottom-profile allowance

SPMG060204 has a 0.40 mm catalog wave height; the SP family table ranges from 0.30 to 0.90 mm. This dimension matters for blind-hole finishing.

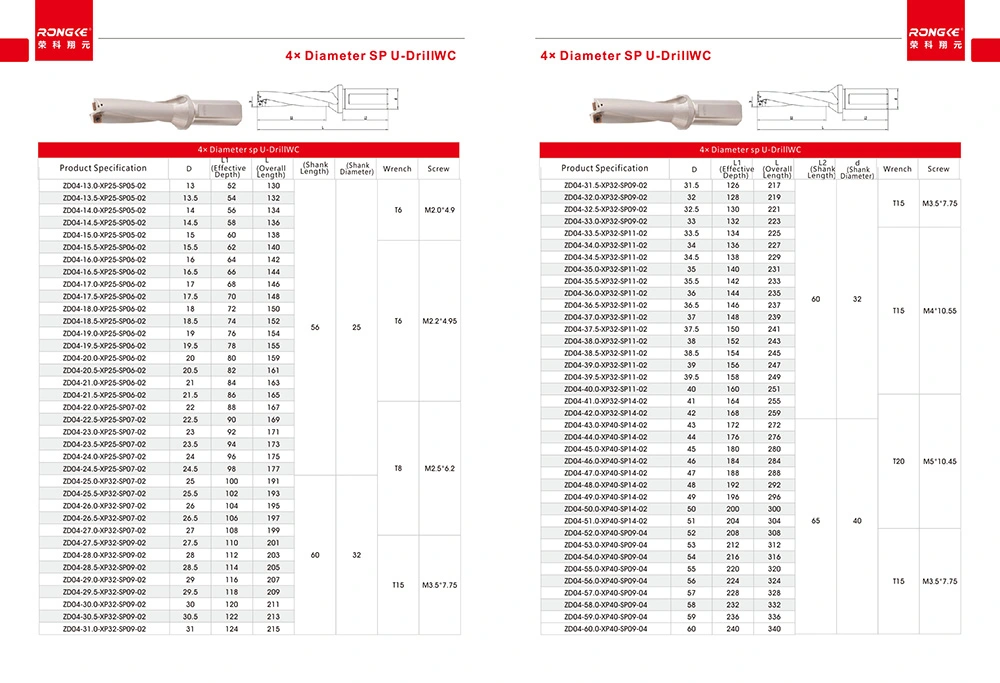

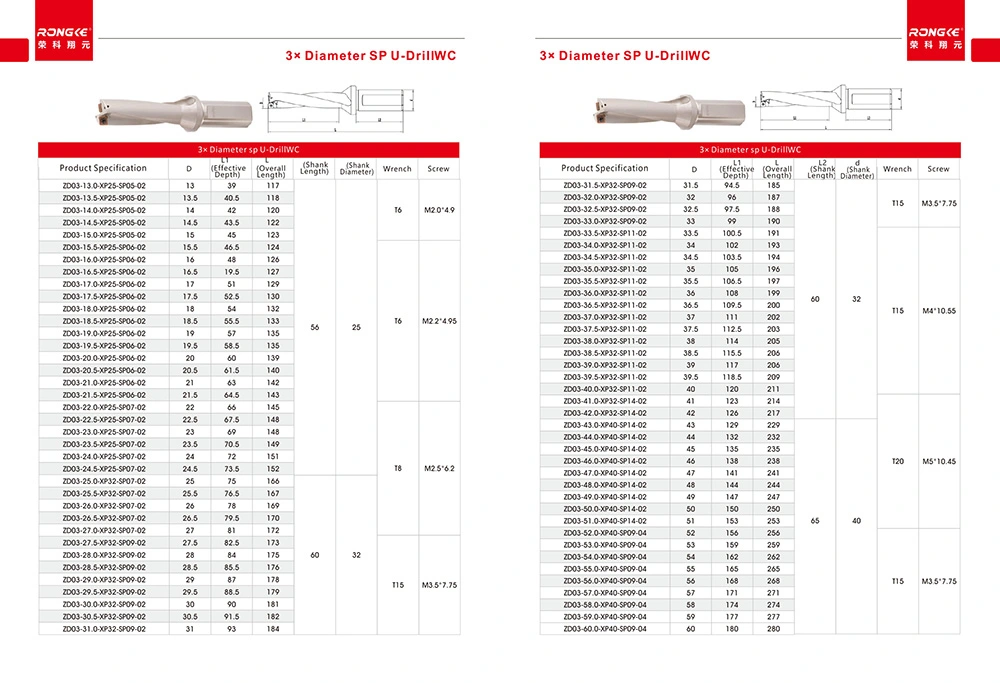

3. Confirm depth using the SP body table

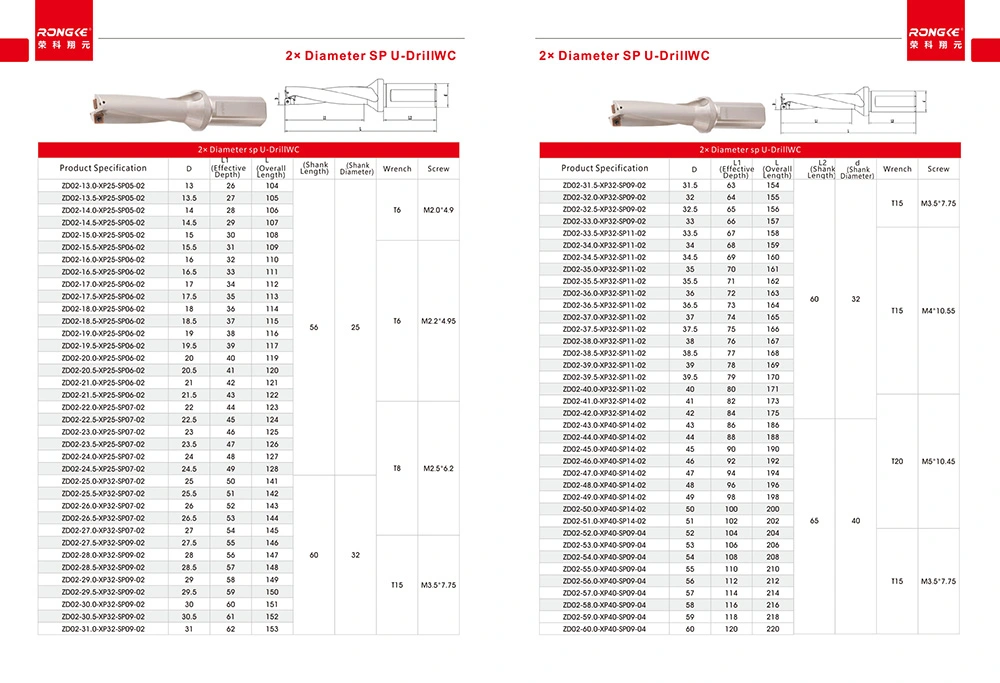

Choose 2D–5D reach for the hole drawing. ZD02-20.0-XP25-SP06-02 has 40 mm effective length and 119 mm overall length.

4. Order the SP screw with the pocket reference

The Ø20 mm 2D example uses an M2.2×4.95 screw and T6 wrench. These example fasteners must not be assumed to fit larger SP pockets.

Order Verification

Production & inspection

Use SP pocket dimensions, the size-specific screw fit and bottom-profile acceptance on an agreed sample hole as the inspection focus. Ask for the measurement method and acceptance limits to be stated in the quotation if a dimensional report is required.

Replacement Order Details

For the Indexable SP Insert U Drill For Shallow Hole, send our factory the selected reference, quantity and requirements for SPMG pocket selection and size-specific fastening. RONGKE can prepare the supplier quotation around that configuration.

FAQ

1. Q: Will a WCMT insert fit an SP body?

A: No. Use the SPMG size assigned to the SP body; WCMT belongs to a different pocket system.

2. Q: Is the remaining bottom feature the same for every SP insert?

A: No. The SP values range from 0.30 to 0.90 mm. For SPMG060204, the catalog value is 0.40 mm.

3. Q: Is overall body length the available drilling depth?

A: No. The Ø20 mm 2D example has 119 mm overall length but only 40 mm effective drilling length.

4. Q: Can I reuse a screw from a different SP insert size?

A: Only if it is the fastener specified for that pocket. The Ø20 mm SP example lists M2.2×4.95 with T6.
