W-Type Outer Indexable Inserts for Large Diameter Drills

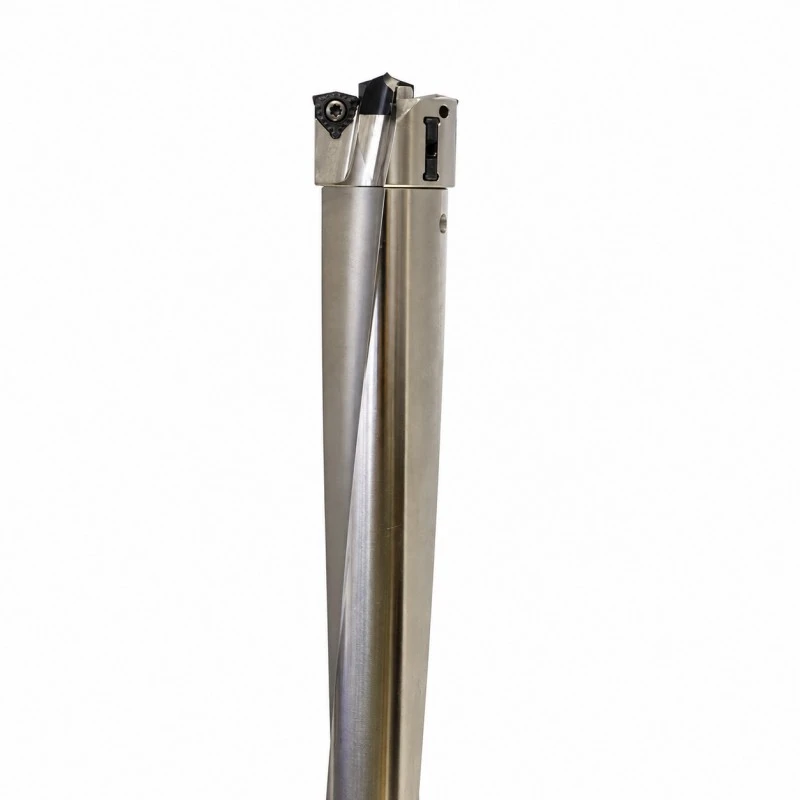

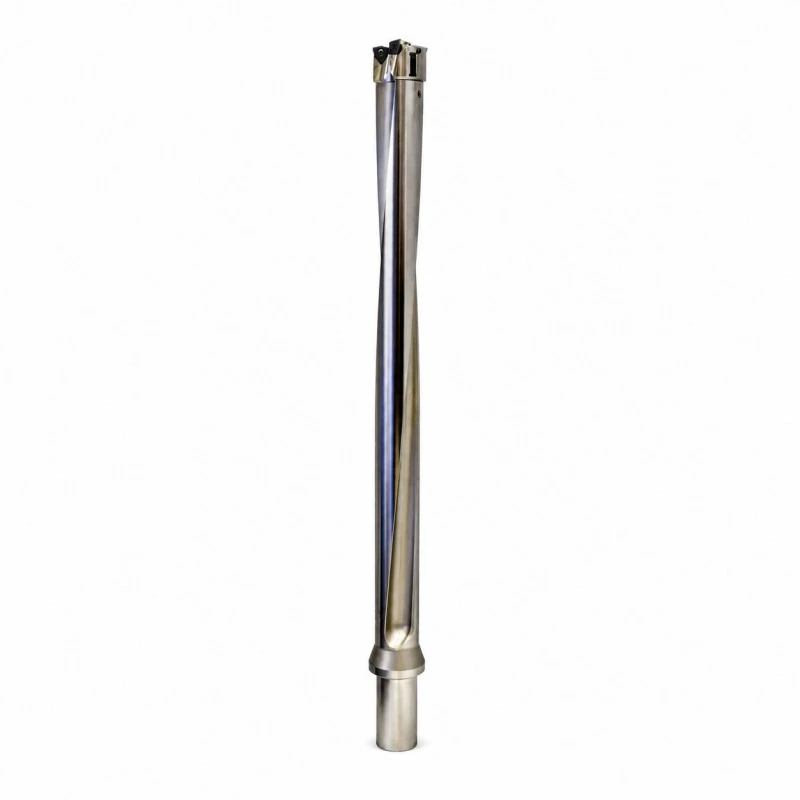

Source the W-Type Outer Indexable Inserts for Large Diameter Drills from RONGKE, a manufacturer in China, with order details focused on the complete WOMT size and edge suffix. W-type outer inserts form the peripheral cutting edges on compatible large-diameter Phoenix drill heads. The catalog includes WOMT straight-edge and wavy-edge options. Their seat dimensions and fasteners identify the correct replacement.

Key Facts at a Glance

Component Roles

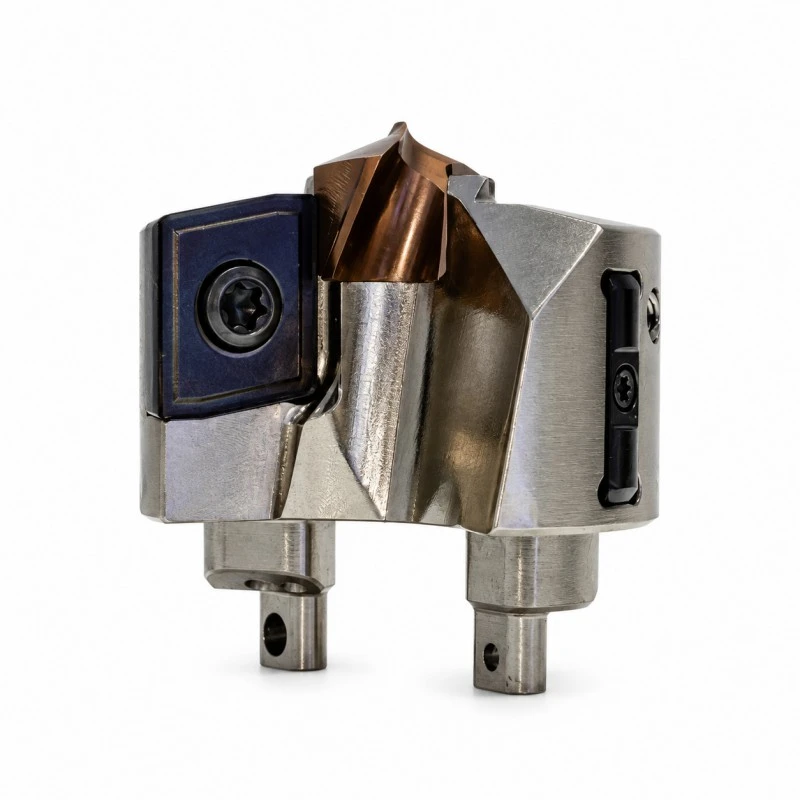

WOMT spares restore the peripheral edge of a W head. The pocket accepts the specified insert size, while -W or -WP identifies the selected straight or wavy edge form.

Where This Configuration Fits

Choose the W-Type Outer Indexable Inserts for Large Diameter Drills when the job calls for the complete WOMT size and edge suffix. These inserts replace the outer cutting edges of the matching large-diameter drill head. Order the full WOMT code, including edge-style suffix, so that the replacement retains the specified pocket fit and cutting geometry.

Selection guide — WOMT vs ZPMT: WOMT belongs to the W outer pocket. Within WOMT, -W and -WP distinguish straight and wavy cutting edges; the size and suffix both belong on a replacement order.

Four Configuration Decisions

1. Order the full WOMT outer-insert code

The catalog lists WOMT051308, 061308, 070408 and 090508. Confirm the W-type head pocket before selecting one of these replacement sizes.

2. Retain straight or wavy edge style

Specify -W for the straight edge or -WP for the wavy option. The suffix identifies cutting geometry and should remain on the purchase order.

3. Match dimensional and fastening details

WOMT051308 has W 8 mm, L10 5.29 mm and S 3.75 mm. Its M3×7.2 screw and T8 reference differ from the larger sizes.

4. Distinguish the peripheral and center components

This WOMT component works at the outer cutting position. The center uses a separately selected Phoenix tip with its own diameter and seat code.

Order Verification

Production & inspection

Use WOMT size dimensions, straight/wavy edge identity and the selected screw-seat fit as the inspection focus. Ask for the measurement method and acceptance limits to be stated in the quotation if a dimensional report is required.

Replacement Order Details

For factory supply of the W-Type Outer Indexable Inserts for Large Diameter Drills, the key purchasing detail is the complete WOMT size and edge suffix. Send RONGKE the component codes so the supplier quotation covers the intended item.

FAQ

1. Q: Will a ZPMT insert fit the same W pocket?

A: No verified interchangeability is established; select WOMT for the specified W pocket.

2. Q: What is the difference between -W and -WP?

A: -W identifies the straight cutting edge; -WP identifies the wavy option.

3. Q: Can a larger insert screw be used with WOMT051308?

A: Use the listed M3×7.2 fastener for the cited size rather than an unverified larger screw.

4. Q: Does a WOMT order include the center cutting tip?

A: No. Specify the center tip separately with its own diameter and seat reference.
