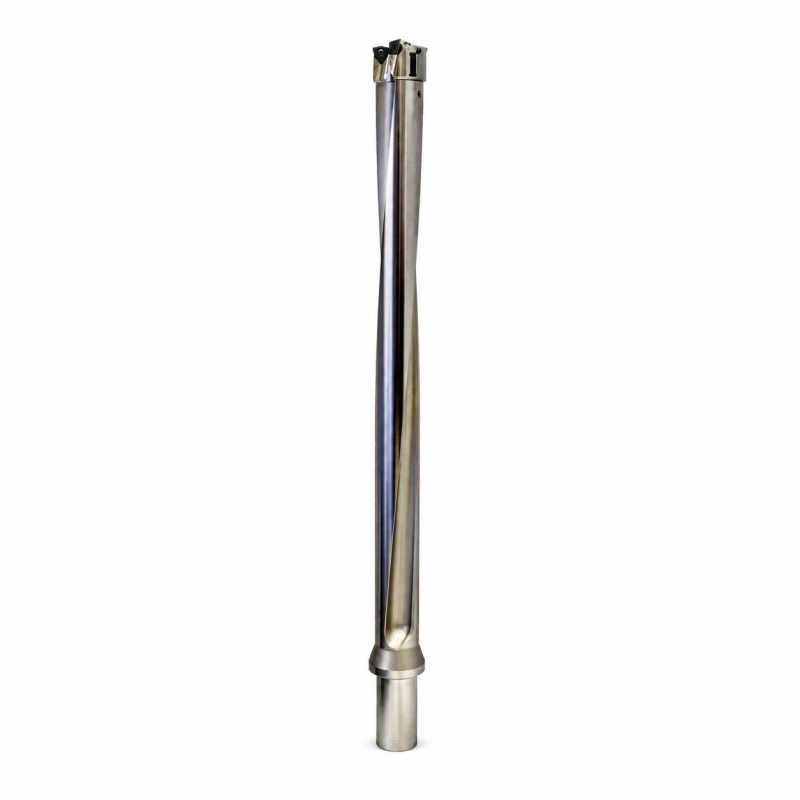

Guide Pads for Modular Large Diameter Phoenix Drill

RONGKE is a China manufacturer offering the Guide Pads for Modular Large Diameter Phoenix Drill for buyers who need to confirm the support radius and fastener of the GP pad. Phoenix guide pads are replaceable support components fitted to dedicated seats on the combined drill. They provide radial guidance against the hole wall; they are selected by pad dimensions and mounting details, not by a cutting diameter or drilling depth ratio.

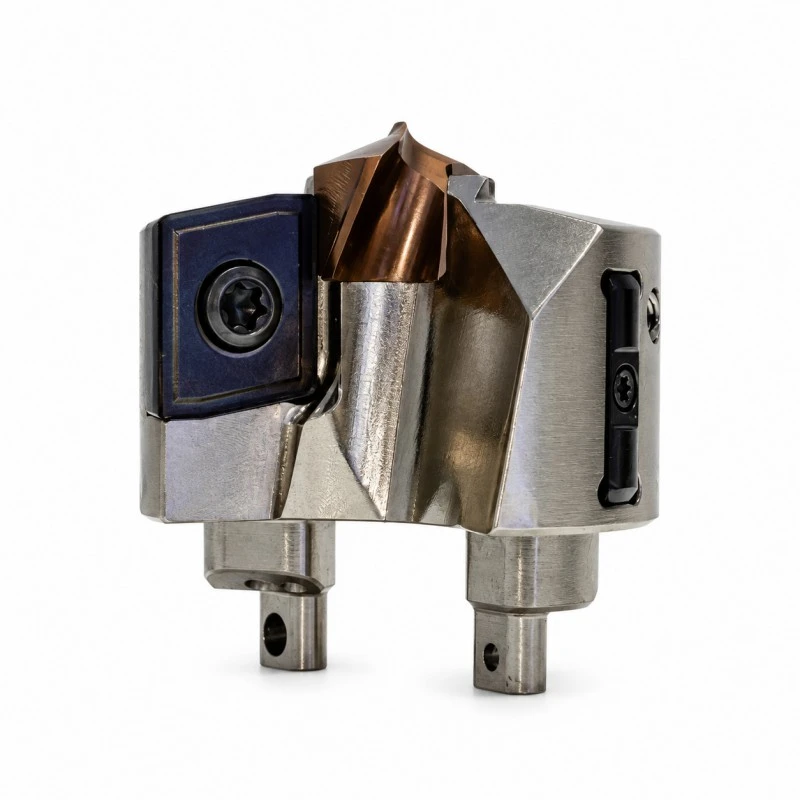

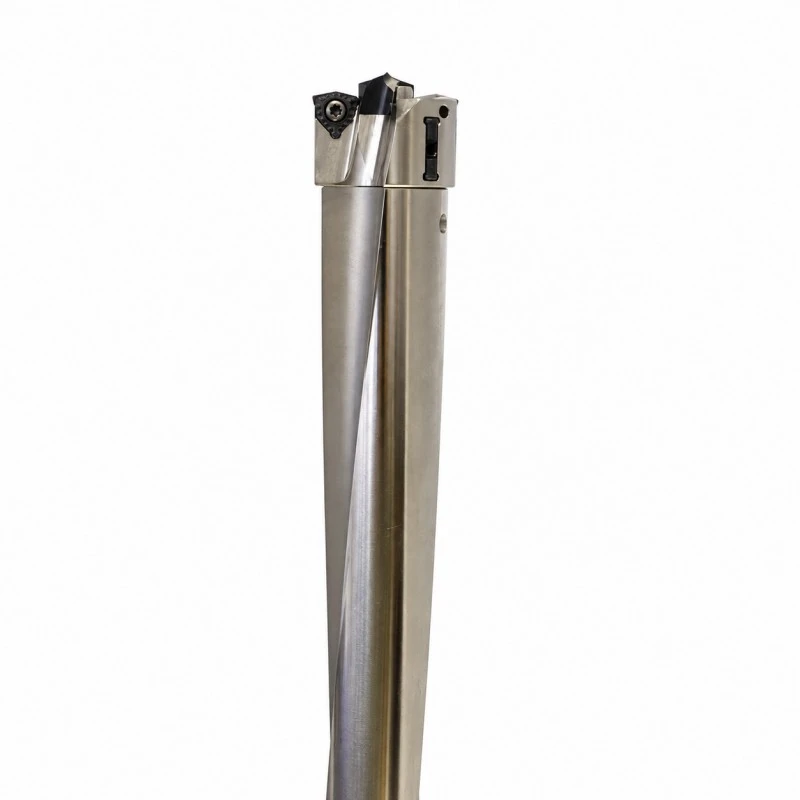

How the Assembly Works

GP pads contact the bore wall to support the specified combined head. They are wear components with a support radius and mounting thickness, not cutting inserts or the margins of a PT/PD body.

Key Facts at a Glance

Four Checks Before Ordering

Match pad width and seat length

The GP table includes widths 4–10 mm and lengths 16–30 mm. Select the complete code; similar length alone does not identify the correct pad.

Check thickness and radius together

GP04-16-045 is 1.8 mm thick with R4.5, while GP10-30-200 is 4.5 mm thick with R20. These dimensions establish different support geometry.

Use the listed pad fastener

The smallest example uses M2.2×6 with T7; the largest uses M4×10 with T15. Match the actual pad reference and its dedicated seat.

Inspect the contact surface and locating seat

Review wear on the support surface and damage or debris at the seat before replacement. A cutting-insert pocket is not a substitute guide-pad location.

Application Fit

Choose the Guide Pads for Modular Large Diameter Phoenix Drill when the job calls for the support radius and fastener of the GP pad. Guide pads are replacement items for maintaining radial support on compatible Phoenix combined drills. Match the pad radius, thickness and screw to its seat rather than substituting a similarly sized cutting insert.

Selection guide — Guide pad vs margin vs insert: a GP pad is a separate support part; a PT/PD margin distinction identifies a Phoenix version; WOMT/ZPMT inserts are peripheral cutting components. They have different selection dimensions.

FAQ

1. Q: Can a guide pad be selected by length alone?

A: No. Width, thickness, support radius and mounting details are also required.

2. Q: Why are thickness and radius important for a replacement pad?

A: They define the support geometry at the hole wall and must correspond to the dedicated seat.

3. Q: Do all GP pads use the same screw?

A: No. The smallest cited pad uses M2.2×6, while the largest uses M4×10.

4. Q: Can a guide pad be fitted in an unused cutting pocket?

A: No. Use only the dedicated guide-pad seat specified for that component.

Inspection and Supply Details

Production & inspection

For this order, inspection should address guide-pad thickness, support radius, contact surface and size-specific screw fit. Add the required tolerances to the purchase drawing before agreeing an acceptance record.

Quotation Checklist

Ask your RONGKE supplier contact to identify the support radius and fastener of the GP pad on the factory offer for the Guide Pads for Modular Large Diameter Phoenix Drill. State the number of complete units or replacement parts needed.
