Modular Large Diameter Phoenix Combined Drill

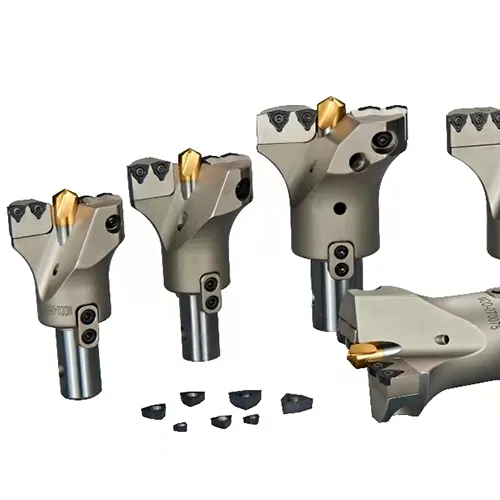

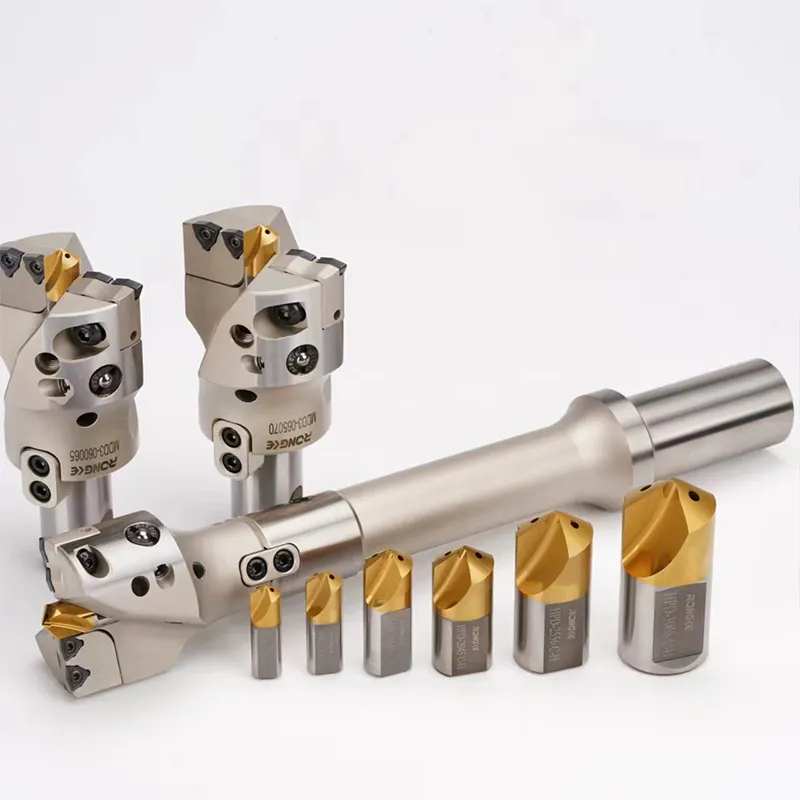

RONGKE is a China manufacturer offering the Modular Large Diameter Phoenix Combined Drill for buyers who need to confirm the center tip and peripheral insert combination. The large-diameter Phoenix combined drill uses a center cutting element with outer inserts. This arrangement separates center cutting from the peripheral cut, allowing the body, center insert and outer insert set to be ordered as matched components.

How the Assembly Works

The combined Phoenix head divides the hole between a smaller center cutter and peripheral inserts. Select W/WOMT or Z/ZPMT first, then confirm the head-to-body connection and center-tip reference.

Key Facts at a Glance

Four Checks Before Ordering

Choose the W or Z outer cutting system

Use the complete head reference to identify WOMT or ZPMT outer inserts. These systems require their corresponding pockets and fasteners.

Match center and finished-hole diameters separately

For the W example PD3200-LJ32-D15-WO05, the finished diameter is 32 mm and the center tip is 15 mm. They are separate ordering dimensions.

Select the head-to-body connection

The same example uses LJ32 and a listed 4D body LJ32-140L-C32. Match the connection code before selecting the longer body options.

Identify fitted support pads

Where the head drawing calls for guide pads, order their complete GP references. The pads support the assembly and are separate from its cutting inserts.

Application Fit

Choose the Modular Large Diameter Phoenix Combined Drill when the job calls for the center tip and peripheral insert combination. The combined Phoenix assembly serves larger holes using a smaller center tip with separate peripheral cutting inserts. Select W or Z from the complete head and body combination before ordering replacement components.

Selection guide — W vs Z combined: W uses WOMT outer inserts and Z uses ZPMT. Each needs its own head row, center-tip pairing and connection code. These are separate from the adjustable MDD cartridge system.

Inspection and Supply Details

Production & inspection

For this order, inspection should address combined-head center-tip seating, outer-insert identity and guide-pad fit where specified. Add the required tolerances to the purchase drawing before agreeing an acceptance record.

Quotation Checklist

For the Modular Large Diameter Phoenix Combined Drill, send our factory the selected reference, quantity and requirements for the center tip and peripheral insert combination. RONGKE can prepare the supplier quotation around that configuration.

FAQ

1. Q: Can the same outer insert set be used for both combined-drill types?

A: No. WOMT and ZPMT belong to different outer-pocket systems.

2. Q: Is the center-tip diameter the finished hole size?

A: No. In the W Ø32 mm example, the center tip is Ø15 mm.

3. Q: Does a matching machine shank alone establish head compatibility?

A: No. The head-to-body connection must also match; the example specifies LJ32.

4. Q: Are guide pads ordered as outer cutting inserts?

A: No. Order guide pads by GP code as support components, separately from the cutting inserts.
