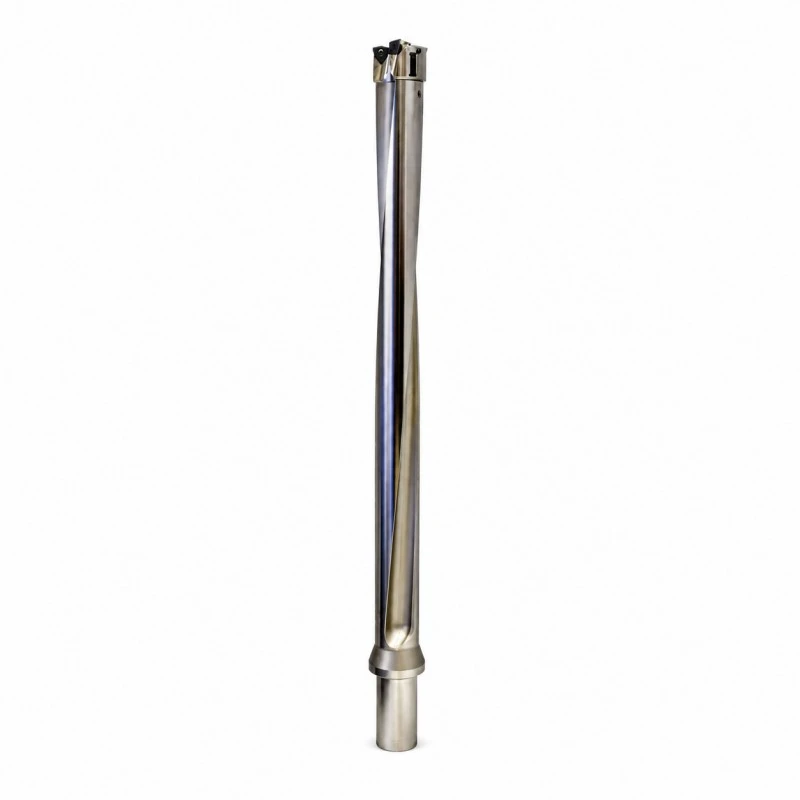

W-Type Modular Large Diameter Phoenix Drill

RONGKE supplies the W-Type Modular Large Diameter Phoenix Drill as a drilling-tool manufacturer in China. Start the purchase specification with the WOMT size and edge style of the W head. The W-type Phoenix combined drill uses the W-series outer insert arrangement. Its outer inserts belong to the WOMT family shown in the catalog; insert size and edge style must match the chosen W-type head.

Configuration Overview

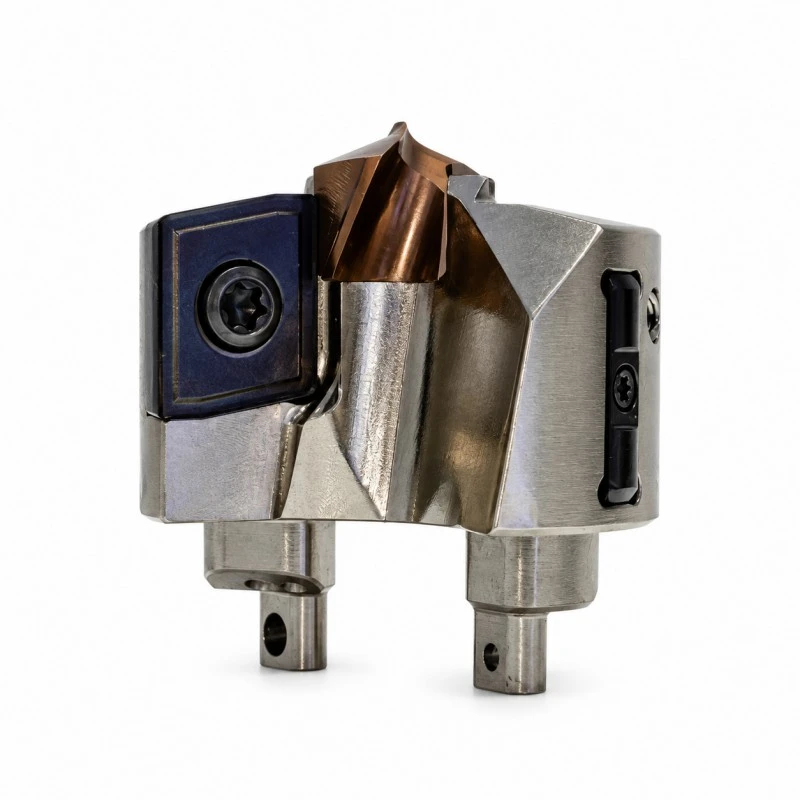

WOMT cutting elements occupy the W head's outer pockets. Straight and wavy edge variants belong to this system; their suffixes should remain visible on replacement purchase orders.

Key Facts at a Glance

Selection Checklist

• Use the WOMT size assigned to the W head

The W table pairs head sizes with WOMT05, 06, 07 or 09 references. Match the size, edge suffix and fastening arrangement before replacing an insert.

• Check the W center-tip diameter

PD3200-LJ32-D15-WO05 uses a 15 mm center tip for a 32 mm finished diameter. The outer cutting system supplies the remaining cutting span.

• Choose a listed W length combination

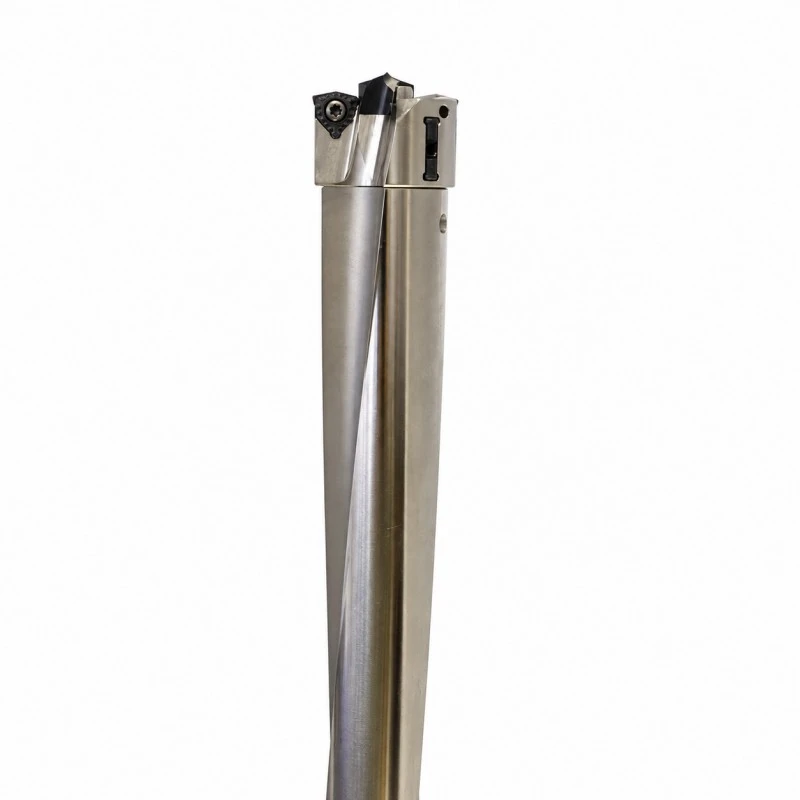

The Ø32 mm example lists a 4D body LJ32-140L-C32 with L2 140 mm and L1 206 mm. Longer options depend on the connection group.

• Retain the specified edge style

Catalog outer inserts include -W straight and -WP wavy edges. Include the suffix and selected grade so replacement stock preserves the chosen cutting geometry.

Specification and Catalog Dimensions — Main Catalog PDF pp.25–29, W head/body and WOMT tables.

Machining and Setup Considerations

Choose the W-Type Modular Large Diameter Phoenix Drill when the job calls for the WOMT size and edge style of the W head. Use the W configuration for a listed W-head diameter and body combination. WOMT size and edge suffix are part of the specification for routine peripheral-insert replacement.

Selection guide — W vs Z: the W Ø32 mm example uses WOMT051308 and LJ32, while the Z Ø52 mm example uses ZPMT070416 and LJ50. Keep the head, outer insert and connection references together.

Quality and Replacement Support

Production & inspection

The relevant acceptance points are WOMT seat fit, specified edge suffix and LJ connection dimensions on the selected W assembly. These checks should be specified for the selected assembly; request the required records when placing the order.

What to Send Our Factory

Confirm the WOMT size and edge style of the W head before requesting a factory price for the W-Type Modular Large Diameter Phoenix Drill. Give RONGKE your supplier order reference for repeat purchases.

FAQ

1. Q: Can WOMT09 replace WOMT05 simply to obtain a larger edge?

A: No. WOMT size must match its pocket and fastener.

2. Q: Why are two different diameters shown in the W head code?

A: One identifies finished hole diameter; the other identifies the smaller center cutting tip.

3. Q: Are all W diameter groups available in every length series?

A: No. Available length combinations depend on the head and connection group.

4. Q: Is the edge-style suffix optional on a WOMT spare order?

A: No. Include -W or -WP so the intended straight or wavy geometry is retained.
