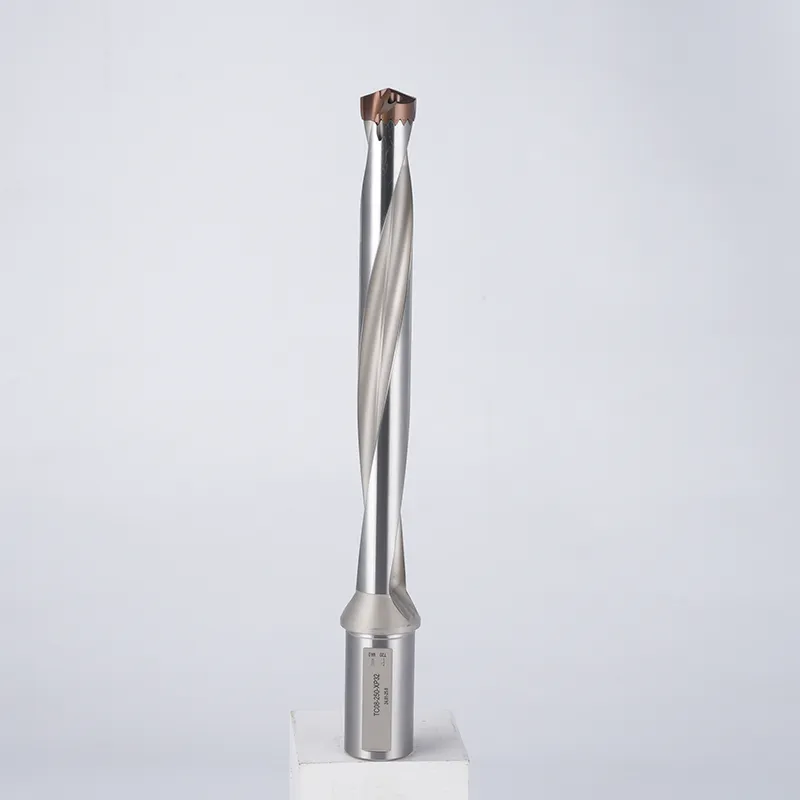

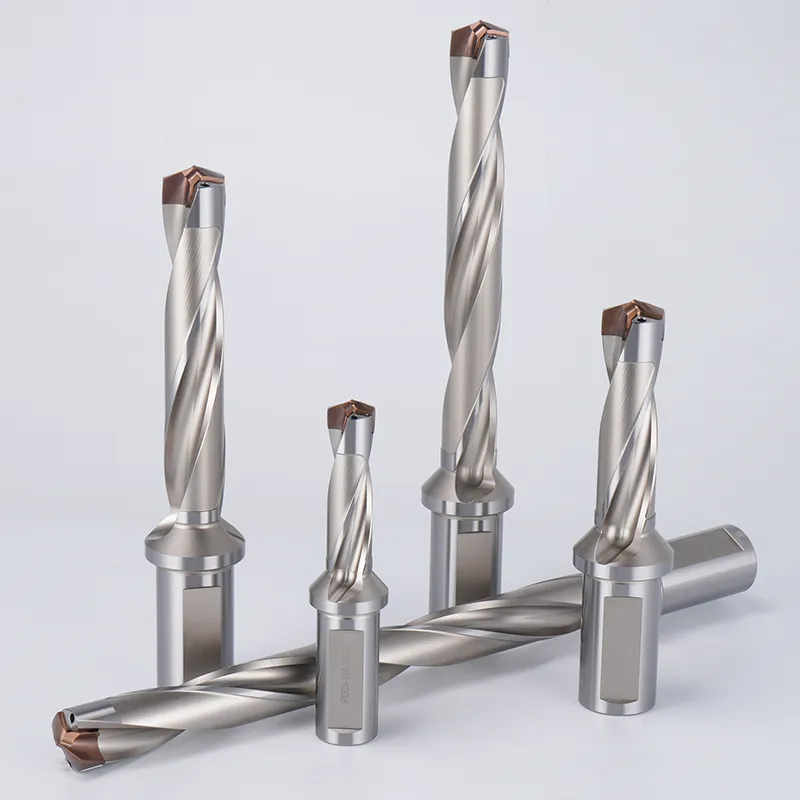

Replaceable Head Phoenix Drill PT

RONGKE is a China manufacturer offering the Replaceable Head Phoenix Drill PT for buyers who need to confirm the no-margin PT body specification. The PT Phoenix drill is the version without margins. PT and PD share the same specifications; the distinction is the margin design. PT selection therefore starts with the required diameter and reach, followed by confirmation of the no-margin version.

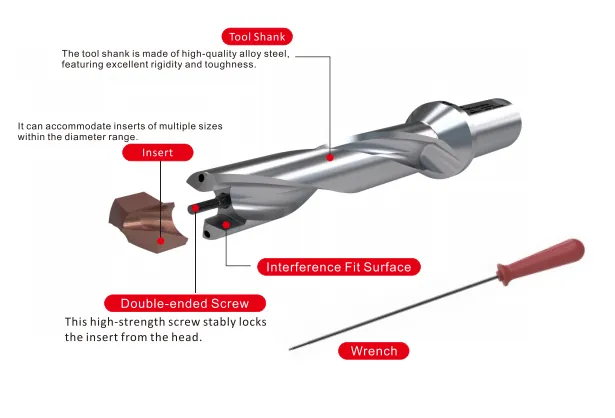

How the Assembly Works

PT provides the Phoenix tip seat without body margins. Its matching PD version has the same listed specifications, so changing between the versions is a configuration choice rather than a change in nominal size.

Key Facts at a Glance

Four Checks Before Ordering

Specify the PT no-margin version

State PT explicitly on the order. PT has no margins, while PD has margins; the supplied product clarification identifies their specifications as the same.

Pair cutting diameter with the PT seat

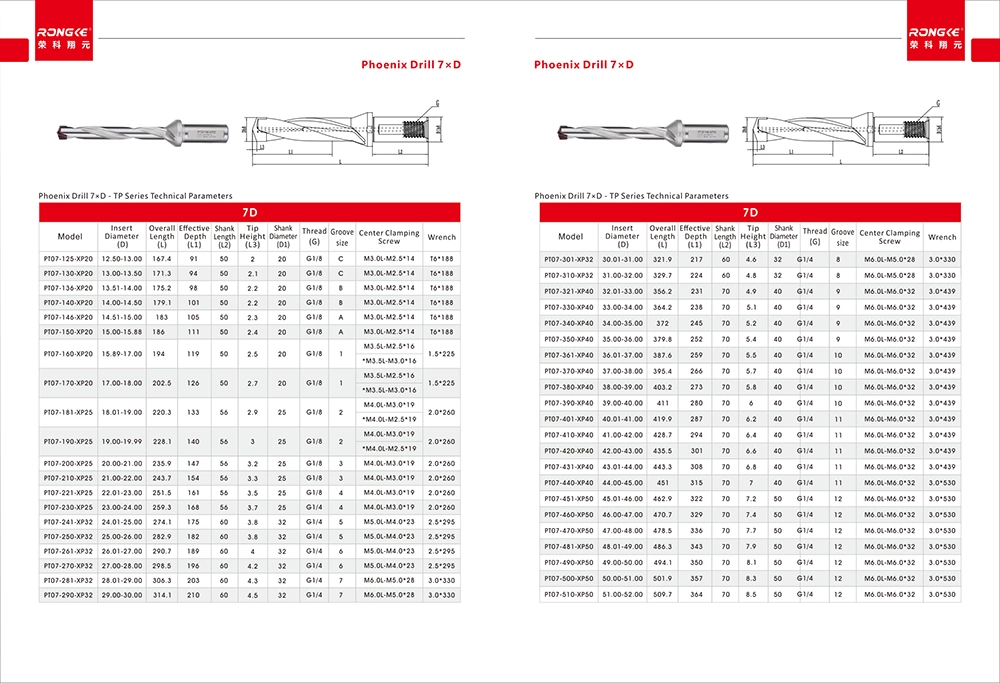

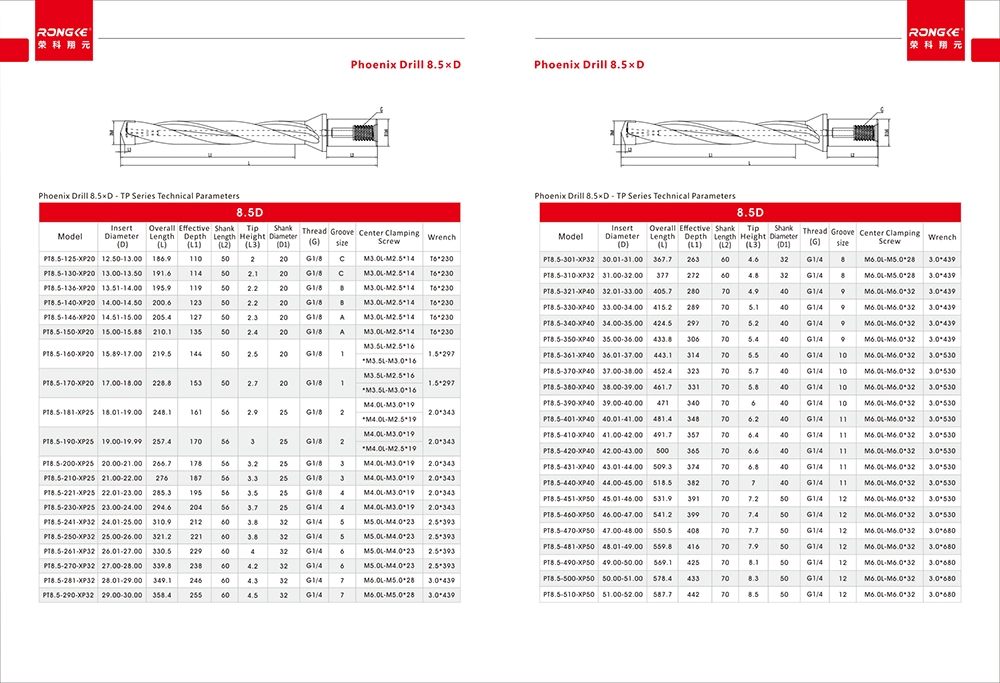

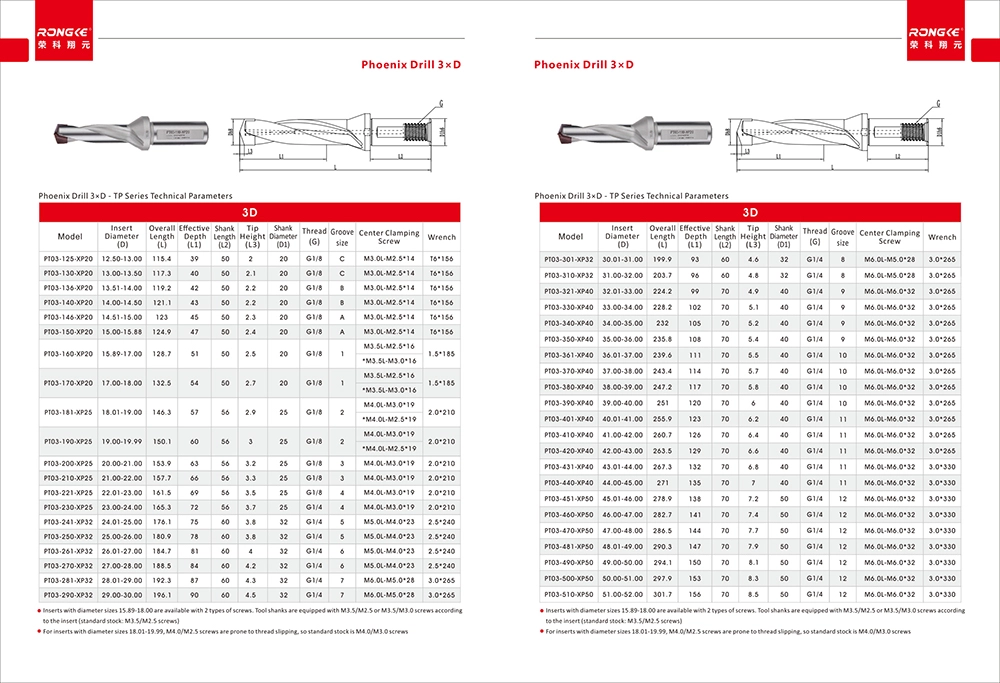

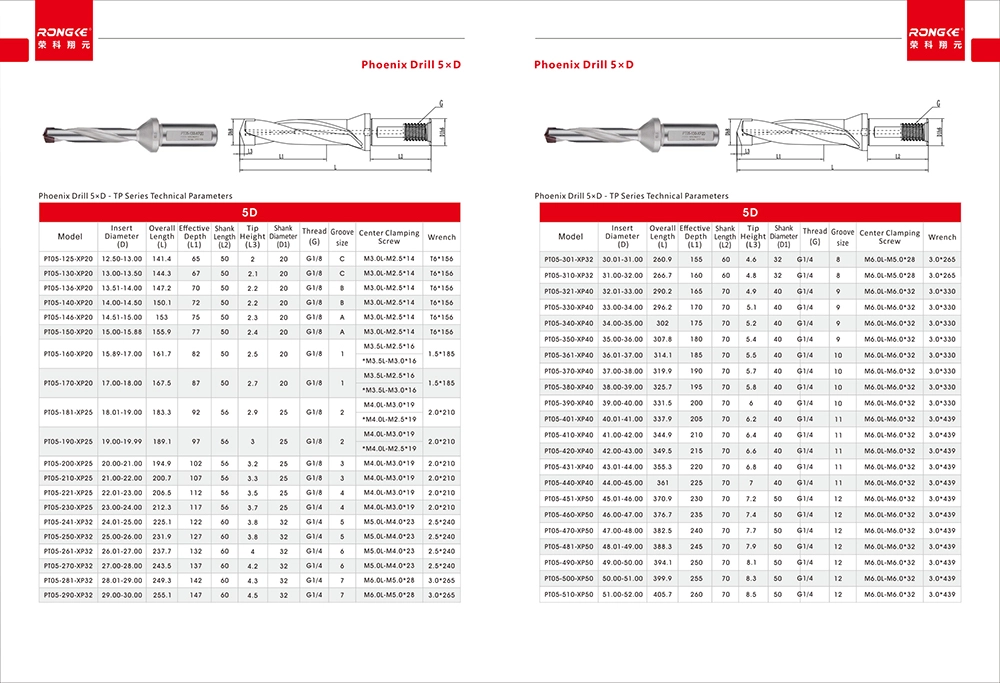

The PT 3D table covers Ø12.50–52.00 mm. For PT03-200-XP25, the listed cutting range is Ø20–21 mm with seat code 3.

Check usable reach and shank clearance

PT03-200-XP25 lists 63 mm effective length, 153.9 mm overall length and a Ø25 mm shank. Use the selected depth-series table for other configurations.

Match the threaded coolant entry

The selected PT03-200-XP25 example lists G1/8. Other PT sizes include G1/4; confirm the thread from the actual row rather than the family name.

Application Fit

Choose the Replaceable Head Phoenix Drill PT when the job calls for the no-margin PT body specification. PT is the Phoenix choice when the specified configuration has no margins. It retains the family’s balance of price, machining efficiency and accuracy; diameter, seat and reach define the complete order.

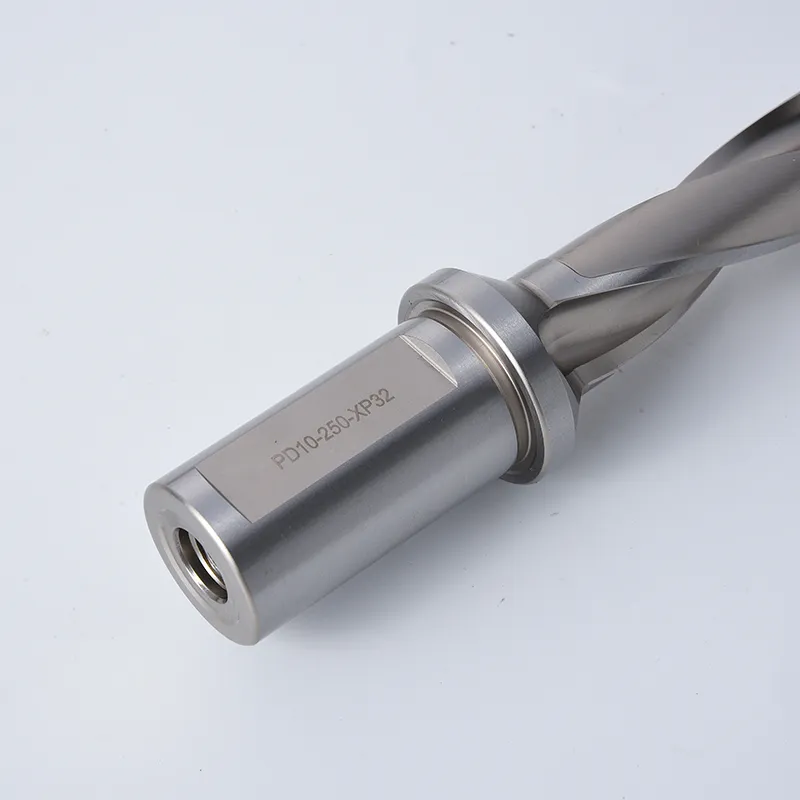

Selection guide — PT vs PD: PT has no margins; PD has margins. RONGKE confirms the same specifications and identifies higher chip evacuation efficiency for PD. Both belong to the best-selling Phoenix family balancing price, efficiency and accuracy.

FAQ

1. Q: What is the core PT versus PD difference?

A: PT has no margins; PD has margins. RONGKE confirms the same specifications and identifies a chip evacuation benefit for PD.

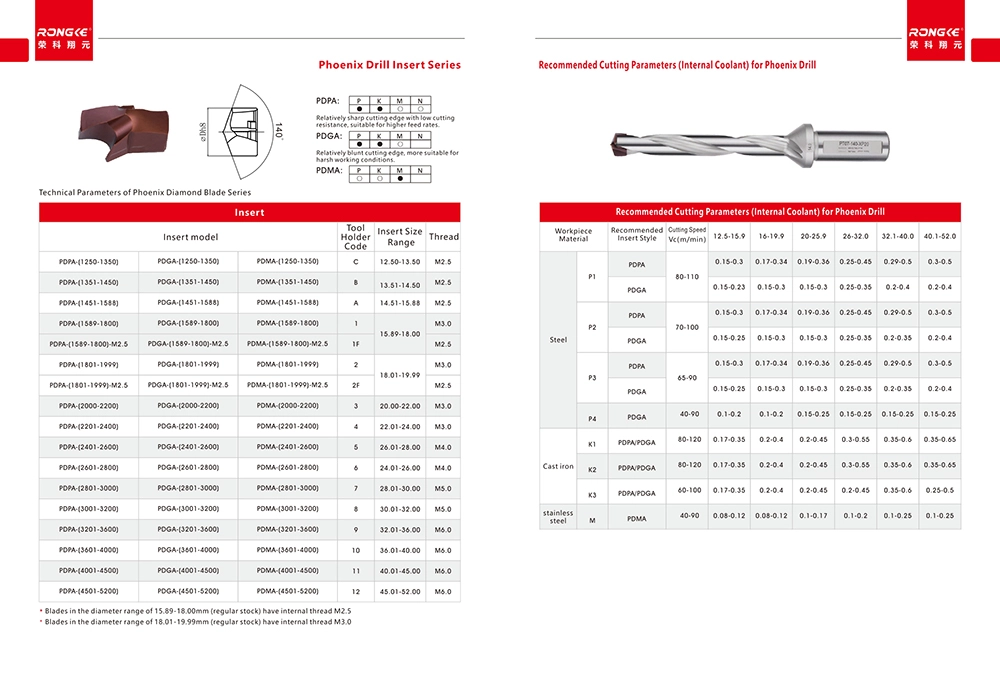

2. Q: Does every Phoenix tip fit the PT body?

A: No. Match the cutting diameter, seat code and fastening details to the PT body.

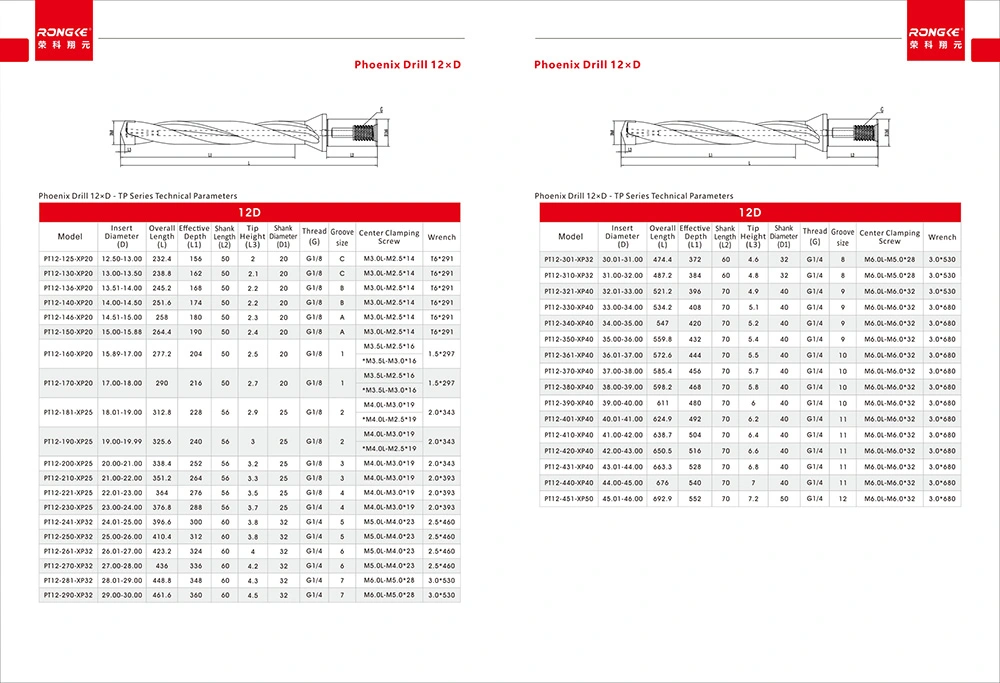

3. Q: Can the PT03 example dimensions be used for a 12D body?

A: No. The cited 63 mm effective and 153.9 mm overall dimensions belong to PT03-200-XP25, not the 12D body.

4. Q: Do all PT bodies have the same coolant thread?

A: No. G1/8 and G1/4 appear in the PT tables. Read the selected body row.

Inspection and Supply Details

Production & inspection

For this order, inspection should address PT identification without margins, Phoenix tip-seat fit and the specified G-thread connection. Add the required tolerances to the purchase drawing before agreeing an acceptance record.

Quotation Checklist

Confirm the no-margin PT body specification before requesting a factory price for the Replaceable Head Phoenix Drill PT. Give RONGKE your supplier order reference for repeat purchases.
