Replaceable Phoenix Drill Tips

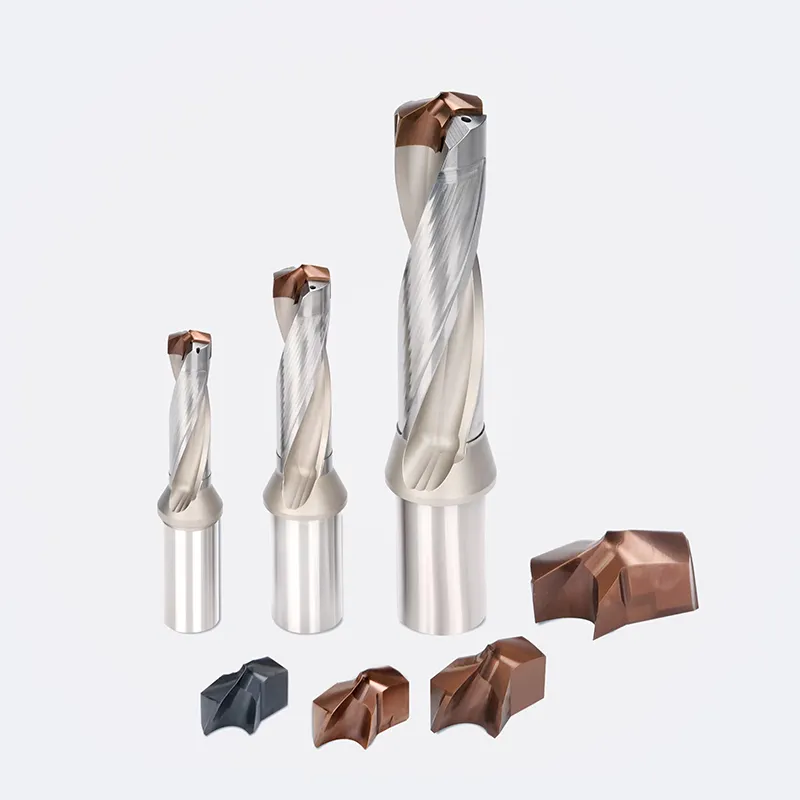

RONGKE supplies the Replaceable Phoenix Drill Tips as a drilling-tool manufacturer in China. Start the purchase specification with tip diameter and Phoenix seat compatibility. These Phoenix drill bits are replacement drill tips for the Phoenix drilling system. Select them by cutting diameter, tip series and matching holder code. The catalog lists head diameters from Ø12.50 to Ø52.00 mm, rather than depth-to-diameter classes.

Configuration Overview

The replaceable tip determines the cutting diameter at the front of the Phoenix assembly. PDPA, PDGA and PDMA identify geometry options; the matching seat remains essential regardless of the selected cutting material.

Key Facts at a Glance

Selection Checklist

• Select the cutting-tip diameter

Order from the Ø12.50–52.00 mm Phoenix tip table. A 3D or 12D designation describes the drill body and is not the size of this replacement cutting tip.

• Choose the catalog tip geometry

PDPA and PDGA are listed for steel and cast iron, with different edge emphasis; PDMA is listed for stainless steel. Include the complete series code.

• Match seat code and fastening thread

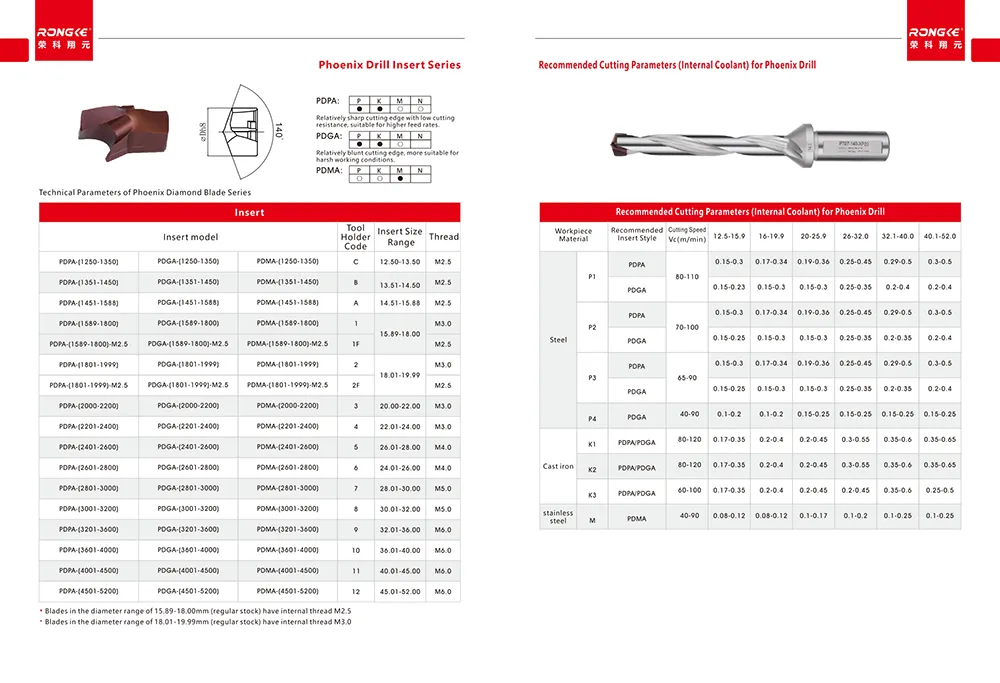

The table lists C, B, A and numbered seats, with M2.5–M6 fastening threads. Check the exact diameter row and existing holder reference together.

• Separate tip tolerance from hole acceptance

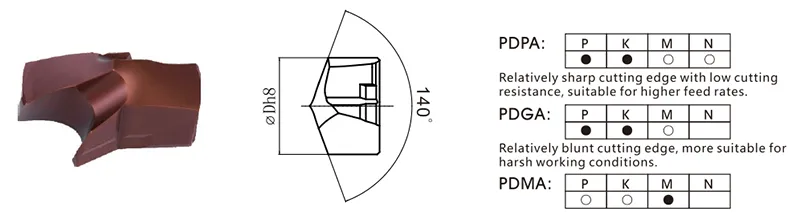

The drawing shows a 140° point and ØD h8. Agree the required finished-hole tolerance separately; the cutting-tip notation is not a process guarantee.

Machining and Setup Considerations

Choose the Replaceable Phoenix Drill Tips when the job calls for tip diameter and Phoenix seat compatibility. These drill tips are used to replace the cutting component of a serviceable Phoenix drill. The PDPA, PDGA and PDMA options allow insert selection around the listed workpiece material and cutting-edge requirements.

Selection guide — Tip vs body: the Phoenix tip is ordered by Ø12.50–52.00 mm cutting diameter, geometry and seat. The body supplies the 3D–12D reach. PT/PD margin selection does not replace the need to identify the tip code.

Quality and Replacement Support

Production & inspection

The relevant acceptance points are Phoenix tip diameter, the 140° point geometry and seat/thread conformity against the tip drawing. These checks should be specified for the selected assembly; request the required records when placing the order.

What to Send Our Factory

For factory supply of the Replaceable Phoenix Drill Tips, the key purchasing detail is tip diameter and Phoenix seat compatibility. Send RONGKE the component codes so the supplier quotation covers the intended item.

FAQ

1. Q: Are Phoenix drill tips ordered by depth ratio?

A: No. Order the tip by cutting diameter, PDPA/PDGA/PDMA series and seat reference; the body determines drilling depth.

2. Q: Are PDPA, PDGA and PDMA identical tips?

A: No. The catalog distinguishes their cutting geometry and workpiece application; PDMA is listed for stainless steel.

3. Q: Is nominal diameter enough to confirm tip compatibility?

A: No. Diameter must be paired with the holder seat and fastening thread.

4. Q: Does h8 on the tip guarantee an h8 finished hole?

A: No. The notation describes the tip drawing. Finished-hole acceptance needs a separate process and workpiece requirement.
