Replaceable Saber Tooth Drill Tips

RONGKE is a China manufacturer offering the Replaceable Saber Tooth Drill Tips for buyers who need to confirm the cutting geometry of the replacement TC tip. The replaceable saber-tooth drill bit is the carbide cutting insert fitted to a compatible holder. The catalog covers Ø12.0–33.5 mm. Replacing the worn insert allows a serviceable holder to remain in use, with geometry chosen for the workpiece and hole requirement. We offer different types of tips for different machining conditions. See the tip selection image for details.

How the Assembly Works

A TC replacement tip forms the cutting end of the saber-tooth system. Diameter and geometry identify the consumable, while the existing holder reference establishes the required connection.

Key Facts at a Glance

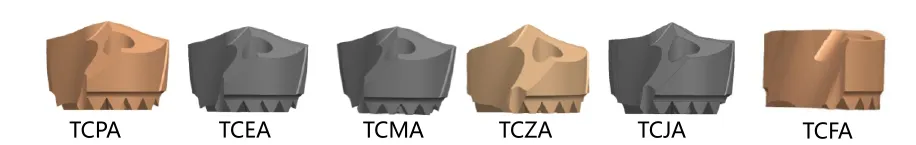

Components

TCPA: High tip strength, for machining ordinary steel. (P) Coating: AlCr

TCEA: Relatively sharp cutting edge, for machining mild steel and cast iron. (P, K) Coating: AlCrN

TCMA: Tough substrate for chipping resistance, specially for stainless steel. (M, K) Coating: AlTiN

TCZA: Double-angle self-centering drill point, 8×D drilling without pilot hole. (P, K) Coating: AlCr

TCJA: Double-angle design for structural steel. Coating: AlCrN

TCFA: 180° point angle, for entry slope conditions or flat-bottom blind holes. (P, K, M) Coating:

Four Checks Before Ordering

Identify the saber cutting tip

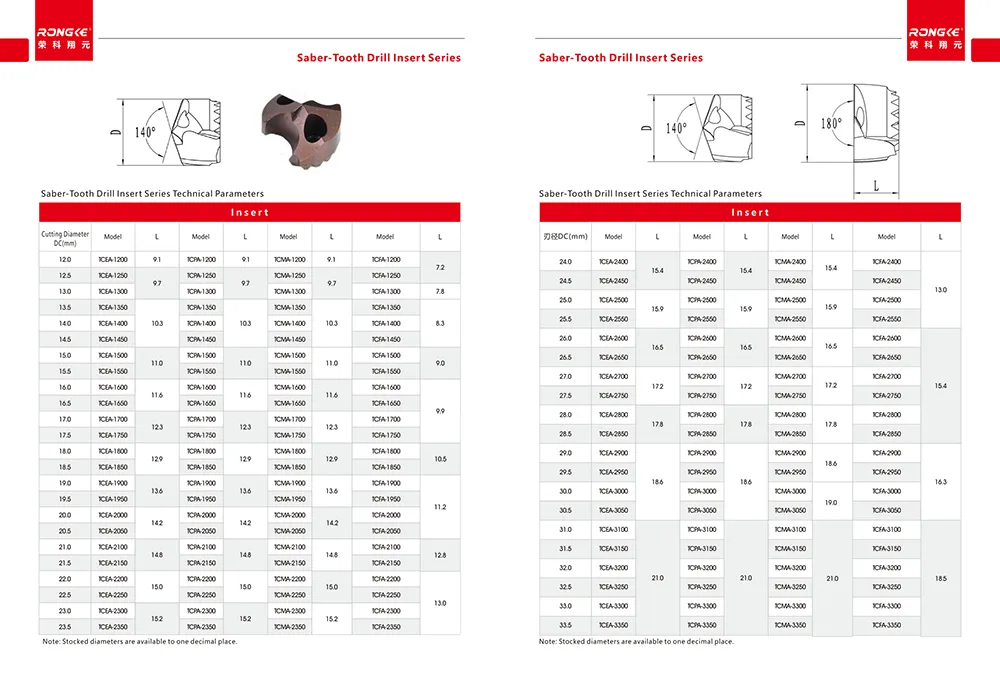

Use the saber-tooth tip table covering Ø12.0–33.5 mm. The cutting tip is a replacement component; the separate holder establishes the drilling reach.

Match the locating seat

Provide the original tip and holder references. The same diameter on a Phoenix or self-locking tip does not establish the same locating geometry.

Confirm cutting geometry for the material

Match the catalog tip option to the material and hole requirement. Keep that geometry in the spare-part description so replacements retain the intended cutting form.

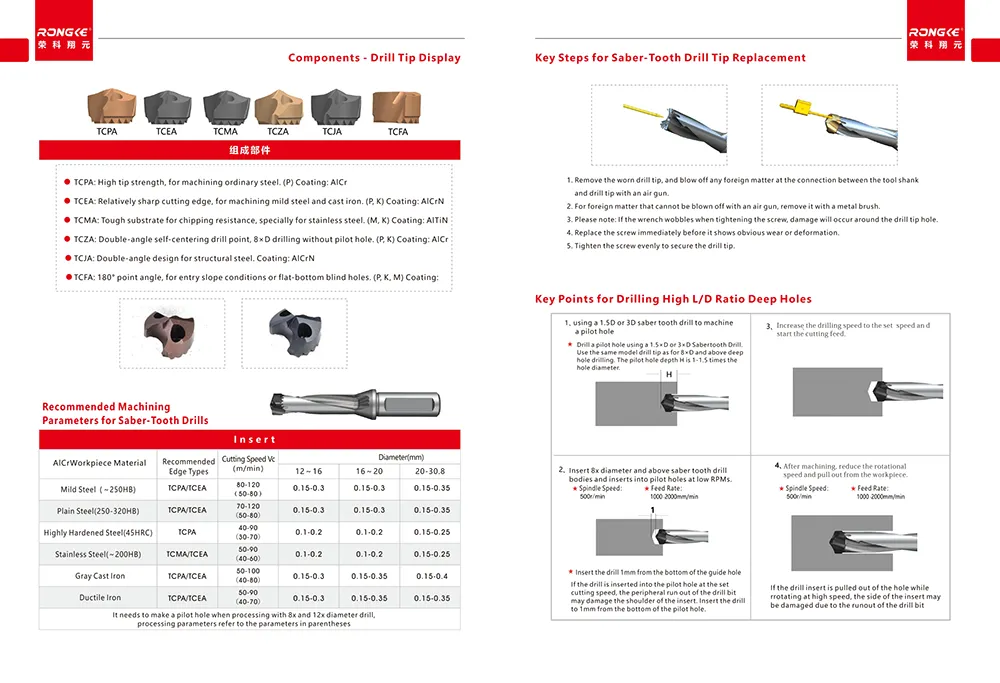

Review tip seating after replacement

Include locating-face condition and assembled tip runout in the setup check. Agree acceptance limits for the actual holder and workpiece requirement.

Application Fit

Choose the Replaceable Saber Tooth Drill Tips when the job calls for the cutting geometry of the replacement TC tip. These drill tips are ordered as cutting-edge replacements for compatible saber-tooth holders. Choose the geometry for the material and hole form while retaining a serviceable matched holder.

Selection guide — Saber tip vs holder: buy the cutting tip to renew the cutting edge, or the TC holder to change the supporting body and reach. A spare tip from another replaceable-tip family is not identified by diameter alone.

FAQ

1. Q: Is this item a complete saber drill?

A: No. It is the replacement cutting tip; the TC holder is a separate item.

2. Q: Can another RONGKE tip family substitute at equal diameter?

A: No cross-family compatibility is established. Verify the actual locating seat and fastening arrangement.

3. Q: What should accompany the diameter in a spare-tip order?

A: Include the full tip reference, holder code and intended workpiece material, so both fit and geometry can be checked.

4. Q: What should be checked after fitting a new saber tip?

A: Check clean locating surfaces, correct seating and assembled tip runout against the agreed setup requirements.

Inspection and Supply Details

Production & inspection

For this order, inspection should address saber-tip cutting geometry, locating surfaces and assembled tip runout in the intended TC holder. Add the required tolerances to the purchase drawing before agreeing an acceptance record.

Quotation Checklist

Use the cutting geometry of the replacement TC tip to define a replacement enquiry for the Replaceable Saber Tooth Drill Tips. Confirm item quantities with RONGKE before accepting the supplier factory quotation.
